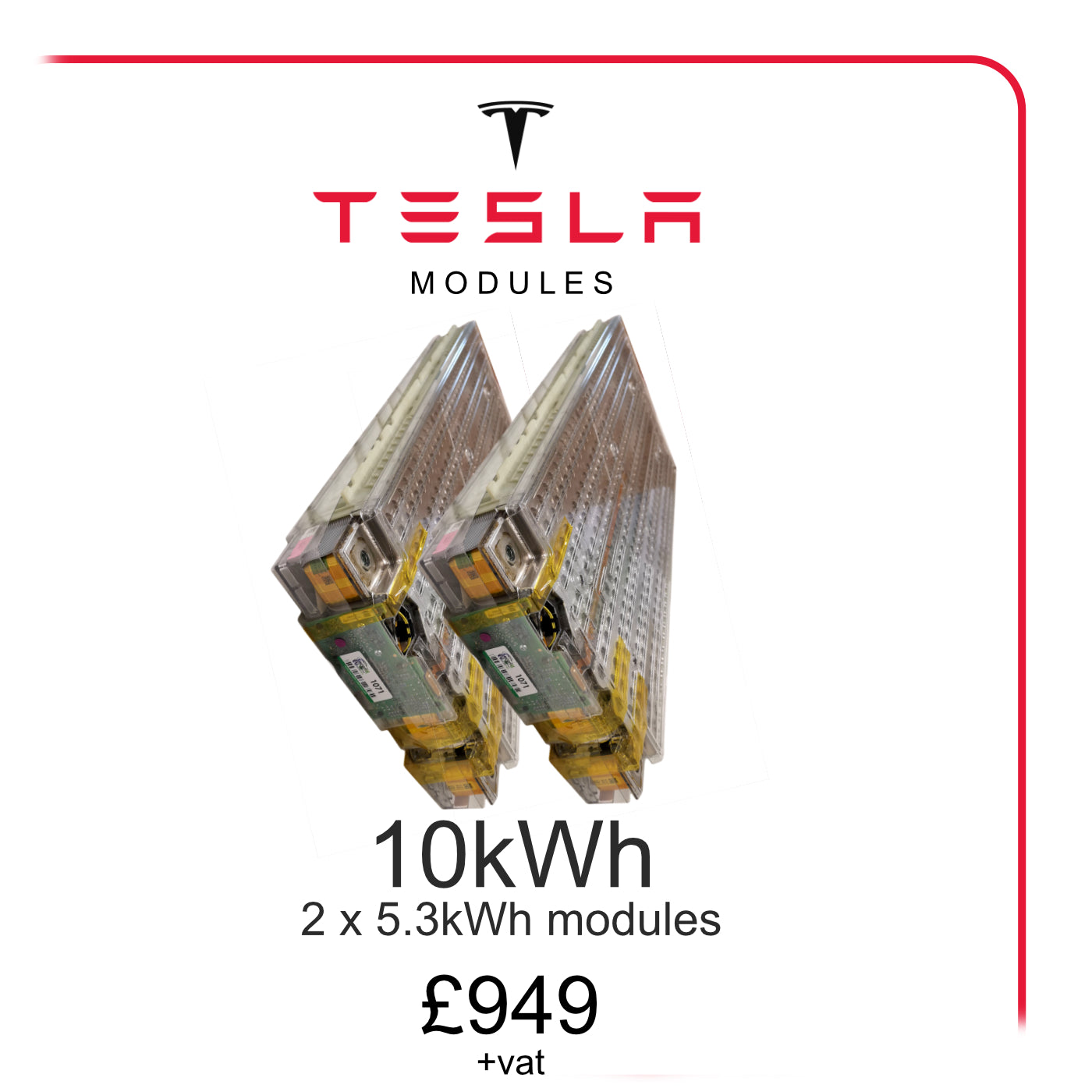

2 x Tesla 5.3kWh module set 10kWh
2 x Tesla 5.3kWh module set 10kWh
excluding VAT
International Shipping NOT available
Couldn't load pickup availability
Great 10kWh deal for 2 x Tesla 5.3kWh modules
Tesla 5.3kWh module Specification. Per module details below
Original Capacity: 232Ah, 5.3kWh
Height: 75mm
Width: 300mm
Length: 685mm
Bolt Size: M8
Voltage nominal: 3.8V/Cell, 22.8V/Module
Charge voltage cut-off: 4.2V/Cell, 25.2V/Module
Discharging cut-off: 3.3V/Cell, 19.8/Module
Weight: 25kg (20Kg in cells)
Cell Type: Tesla Custom Panasonic 18650 (45g)
Configuration: 74p6s (444 total 18650 cells)
Maximum Voltage: 25.2V (4.2V per cell)
Nominal Voltage: 22.8V (3.8V per cell)
Minimum Voltage: 18V (3V per cell)
Discharge Current (3s): 1500A
Discharge Current (10s): 1000A
Discharge Current (Continuous): 225A
Charging Current (Max): 225A
Discharge Temp Range: -20C - 60C
Charging Temp Range: 0 - 45C
Storage Temp Range: -20C - 50C
