EMUS BMS Kit for Jaguar iPace Battery Module

This EMUS BMS Basic Starter Kit - Jaguar iPace BMS includes everything you need to operate two Jaguar iPace modules (minimum). Although easily expandible beyond this.

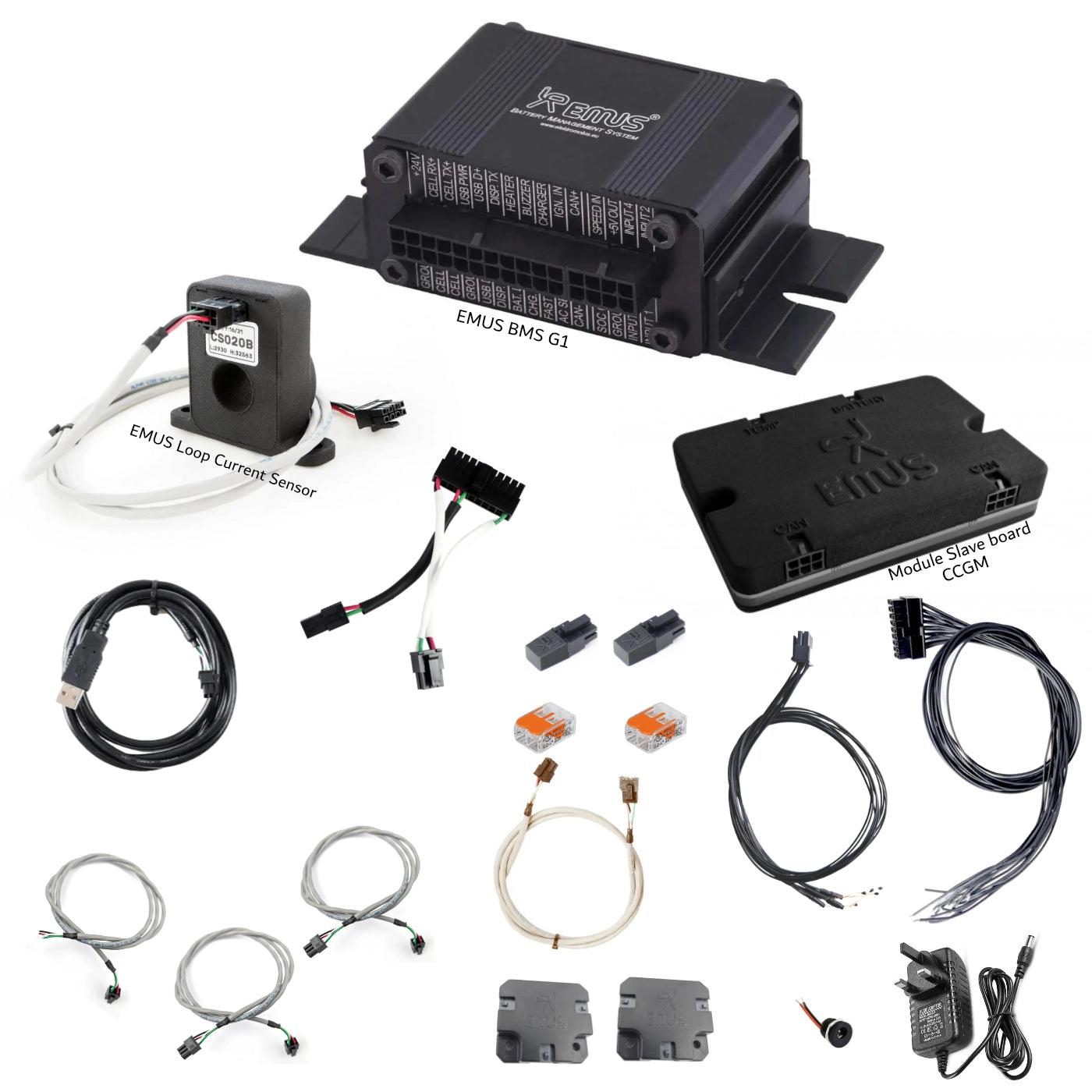

Included in Kit
1x EMUS G1 BMS Control Unit - 58842 (CU021F)

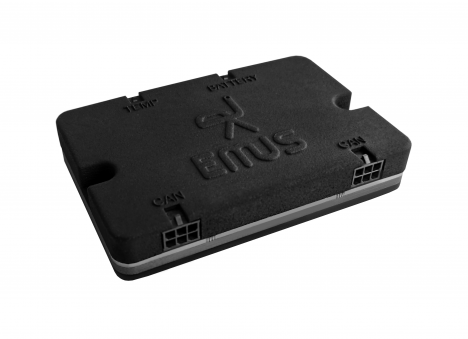

1x EMUS G1 Centralized CAN Cell Group Module CCGM -  58846 (CCGM023A)

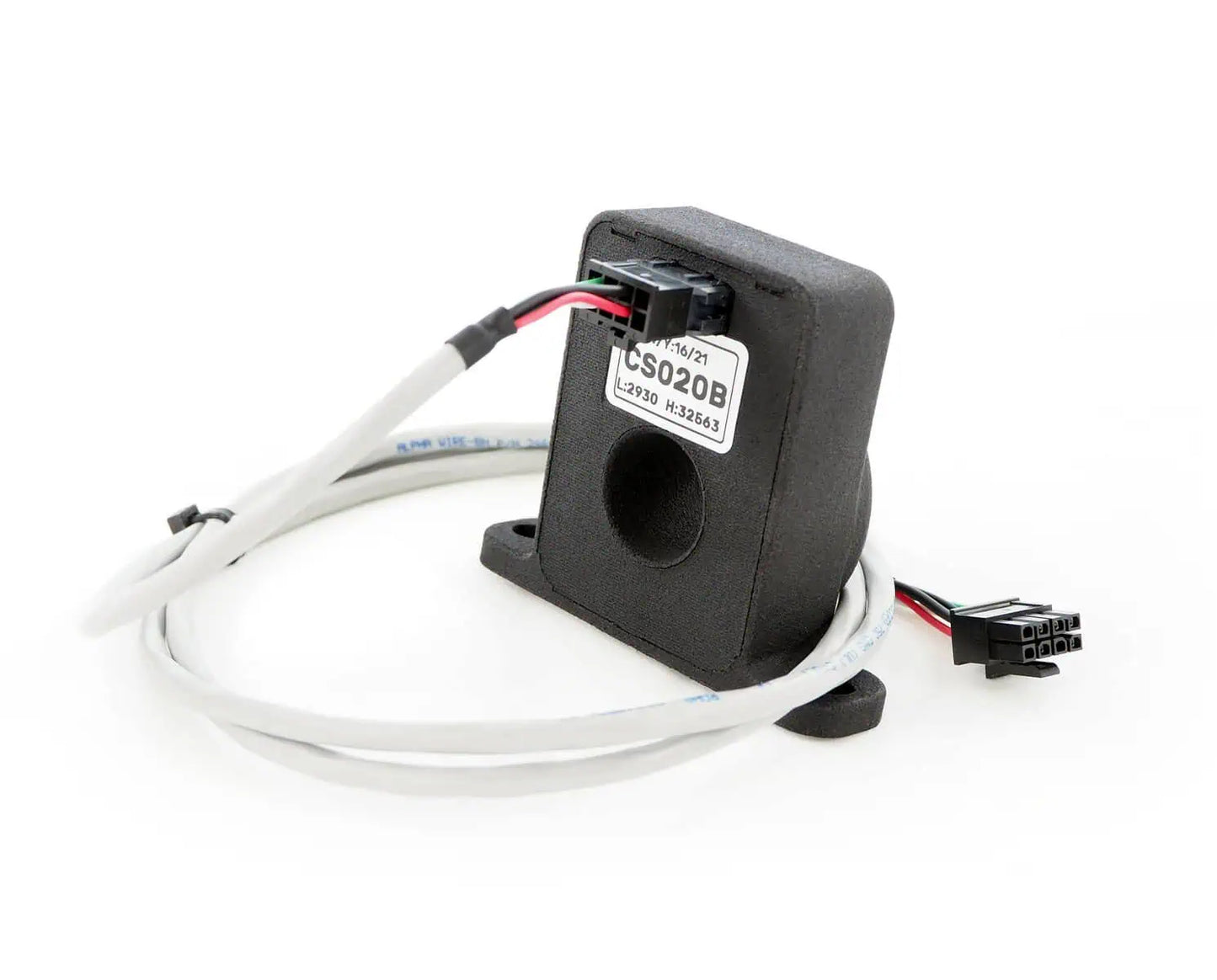

1x EMUS G1 Loop Current Sensor with cable - 58838 (CS020B+C_150)
1x EMUS USB Power over CAN cable 70cm – 58839 (UPC01)
1x EMUS Temperature Sensors for CCGM 45cm – 58847 (ETS05-45)
1x EMUS Cells connection for CCGM 45cm – 58848 (CH02-45)
1x EMUS CAN cable, 150cm – 58824 (CNC03-150)
1x EMUS CAN cable, 50cm – 58822 (CNC03-50)
2x EMUS 3-Way CAN Connector - 58810 (C3WC01A)
2x EMUS CNT01 CAN Termination - 58811 (CNT01)
1x EMUS USB Power over CAN cable 100cm -58841(PWR01-100)
1x EMUS USB cable 150cm -58840 (USB02)
2x 2-Way Compact Splicing Connector – 99996
1x DC female barrel socket  - 99911
1x 12V UK Power Supply AC/DC – 99912

Not included in Kit (excluded):
Battery Module(s)
Data plugs for Battery Module(s)
Battery Power cables - Parallel/Series cable
Battery Charger / Inverter - Compatible list
Mains Inverter - Compatible list

Buyers are expected to have comprehensive battery and electrical knowledge and to be self supporting with aid of the comprehensive manual, data sheets and FAQ’s provided. Frequently Asked Questions | EMUS BMS

Above kit will only work with:

2 x Jaguar iPace battery Modules (not supplied in this kit).

Note: you can not run this BMS on 1 Jaguar iPace Module.

Scalability
This BMS system is scalable. A single G1 BMS can connect to 28 CCGM (Max of 448 cells depending on configuration) you can even connect multiple G1 BMS together with one becoming the master to produce even larger systems.

If you want to connect to more modules than this Basic Starter Kit is designed for, please open a support ticket HERE. Include how many Modules you require and someone will create you a BMS kit package.

Accessories
EMUS Accessories website has many additional accessories you can purchase from us currently not listed on this website such as bluetooth, screens, sensors, Isolator, temperature probes etc.. Just contact us HERE if you require them.

Manuals & Datasheets
Download EMUS G1 BMS Datasheet
Download EMUS G1 BMS Manual
Download EMUS CCGM Datasheet

Need Batteries too?
If you also want to buy some Jaguar iPace Battery Modules. You can order them HERE

(NOTE: Battery modules not available for International Shipping)
