EMUS
EMUS BMS Kit for Any Battery Module
EMUS BMS Kit for Any Battery Module
excluding VAT
International Shipping Available - Excluding USA & Canada
Couldn't load pickup availability
This EMUS BMS Basic Starter Kit includes everything you need to operate Any Generic Lithium battery. With this kit you be able to connect from 6 to 16 cells. If you need to connect to more cells the system can support it just contact us HERE

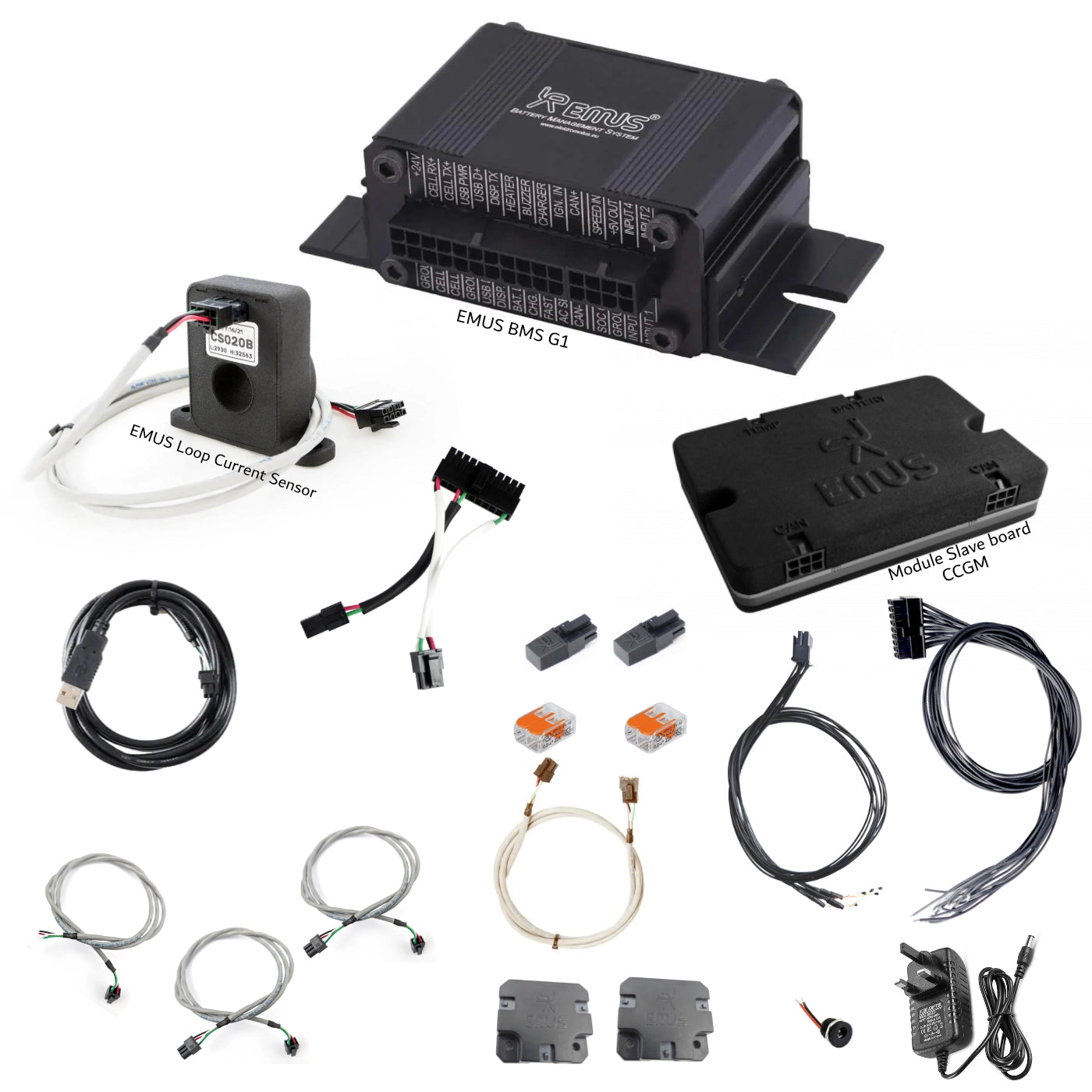

Included in Kit
1x EMUS G1 BMS Control Unit - 58842 (CU021F)
1x EMUS G1 Centralized CAN Cell Group Module CCGM - 58846 (CCGM023A)
1x EMUS G1 Loop Current Sensor + cable - 58838 (CS020B+C_150)
1x EMUS USB Power over CAN cable 70cm – 58839 (UPC01)
1x EMUS Temperature Sensors for CCGM 45cm – 58847 (ETS05-45)
1x EMUS Cells connection for CCGM 45cm – 58848 (CH02-45)
1x EMUS CAN cable, 150cm – 58824 (CNC03-150)
1x EMUS CAN cable, 50cm – 58822 (CNC03-50)
2x EMUS 3-Way CAN Connector - 58810 (C3WC01A)
2x EMUS CNT01 CAN Termination - 58811 (CNT01)
1x EMUS USB Power over CAN cable 100cm -58841(PWR01-100)
1x EMUS USB cable 150cm -58840 (USB02)
2x 2-Way Compact Splicing Connector – 99996
1x DC female barrel socket - 99911
1x 12V UK Power Supply AC/DC – 99912
Not included in Kit (excluded):
Battery Module(s)
Data plugs for Battery Module(s)
Battery Power cables - Parallel/Series cable
Battery Charger - Compatible list
Mains Inverter - Compatible list
Buyers are expected to have comprehensive battery and electrical knowledge and to be self supporting with aid of the comprehensive manual, data sheets and FAQ’s provided. Frequently Asked Questions | EMUS BMS
Above kit will work with:
Any Lithium Battery with 6 to 16 cells. (See datasheet below for Voltage range)
Scalability
This BMS system is scalable. A single G1 BMS can connect to 28 CCGM (Max of 448 cells depending on configuration) you can even connect multiple G1 BMS together with one becoming the master to produce even larger systems.
If you want to connect to more modules than this Basic Starter Kit is designed for, please open a support ticket HERE. Include how many Modules you require and someone will create you a BMS kit package.
Accessories
EMUS Accessories website has many additional accessories you can purchase from us currently not listed on this website such as bluetooth, screens, sensors, Isolator, temperature probes etc.. Just contact us HERE if you require them.
Manuals & Datasheets
Download EMUS G1 BMS Datasheet
Download EMUS G1 BMS Manual
Download EMUS CCGM Datasheet
Need Batteries too?
If you also want to buy some EV Battery Modules. view at our range HERE
(NOTE: Battery modules not available for International Shipping)
