EMUS BMS Kit for Tesla 5.3kWh Battery Module

EMUS BMS Kit for Tesla 5.3kWh Battery Module

excluding VAT

£579.00 GBP
£579.00 GBP
Sale Sold out
Shipping & tax calculated at checkout.

International Shipping Available - Excluding USA & Canada

This EMUS BMS Basic Starter Kit - Tesla 5.3kWh Module BMS includes everything you need to operate a Tesla module. This Battery Management System (BMS) starter kit is designed to support up to one Tesla 5.3kWh battery module. Although easily expandible beyond this.

Included in Tesla BMS Kit:

1x EMUS G1 BMS Control Unit - 58842(CU021F)
1x EMUS G1 Loop Current Sensor with cable-58838(CS020B+C_150)
1x EMUS USB cable 150cm - 58840(USB02)
1x EMUS USB Power over CAN cable 70cm - 58839(UPC01)
1x EMUS Power to CAN cable 100cm - 58841(PWR01-100)
1x EMUS CAN cable, 100cm - 58823(CNC03-100)
2x EMUS CAN cable, 50cm - 58822(CNC03-50)
3x EMUS 3-Way CAN Connector - 58810(C3WC01A)
2x EMUS CNT01 CAN Termination - 58811(CNT01)
2x 2-Way Compact Splicing Connector - 99996
1x DC female barrel socket - 99911
1x 12V UK Power Supply AC/DC - 99912



Not included in Kit (excluded):

Battery Module(s)
Data plugs for Battery Module(s)
Battery Power cables - Parallel/Series cable
Battery Charger / Inverter - Compatible list
Mains Inverter - Compatible list

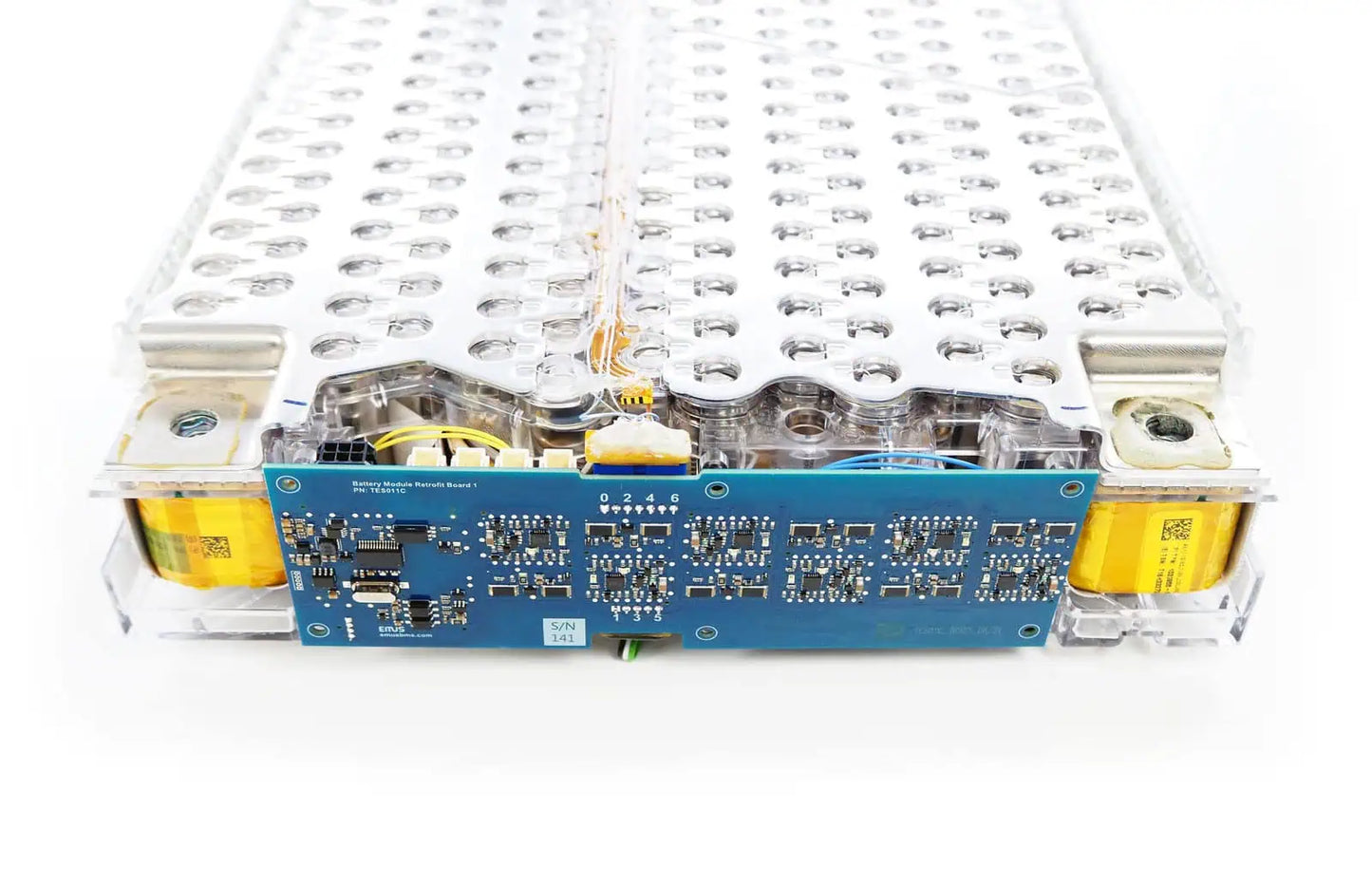

Buyers are expected to have comprehensive battery and electrical knowledge and to be self supporting with aid of the comprehensive manual, data sheets and FAQ’s provided. Retrofit PCB board needs to manually be fitted to Tesla Module

Above Starter Kit will only work with:

1 x Tesla 5.3kWh battery Module (not supplied in this kit).

Scalability
This BMS system is scalable. A single G1 BMS can connect to 24 Tesla modules in series/parallel per system. You can even connect multiple G1 BMS together with one becoming the master to produce even larger systems.

If you want to connect to more modules than this Basic Starter Kit is designed for, please open a support ticket HERE. Include how many Modules you require and someone will create you a BMS kit package.

Accessories
EMUS Accessories website has many additional accessories you can purchase from us currently not listed on this website such as bluetooth, screens, sensors, Isolator, temperature probes etc.. Just contact us HERE if you require them.

Manuals & Datasheets
Download EMUS G1 BMS Datasheet
Download EMUS G1 BMS Manual

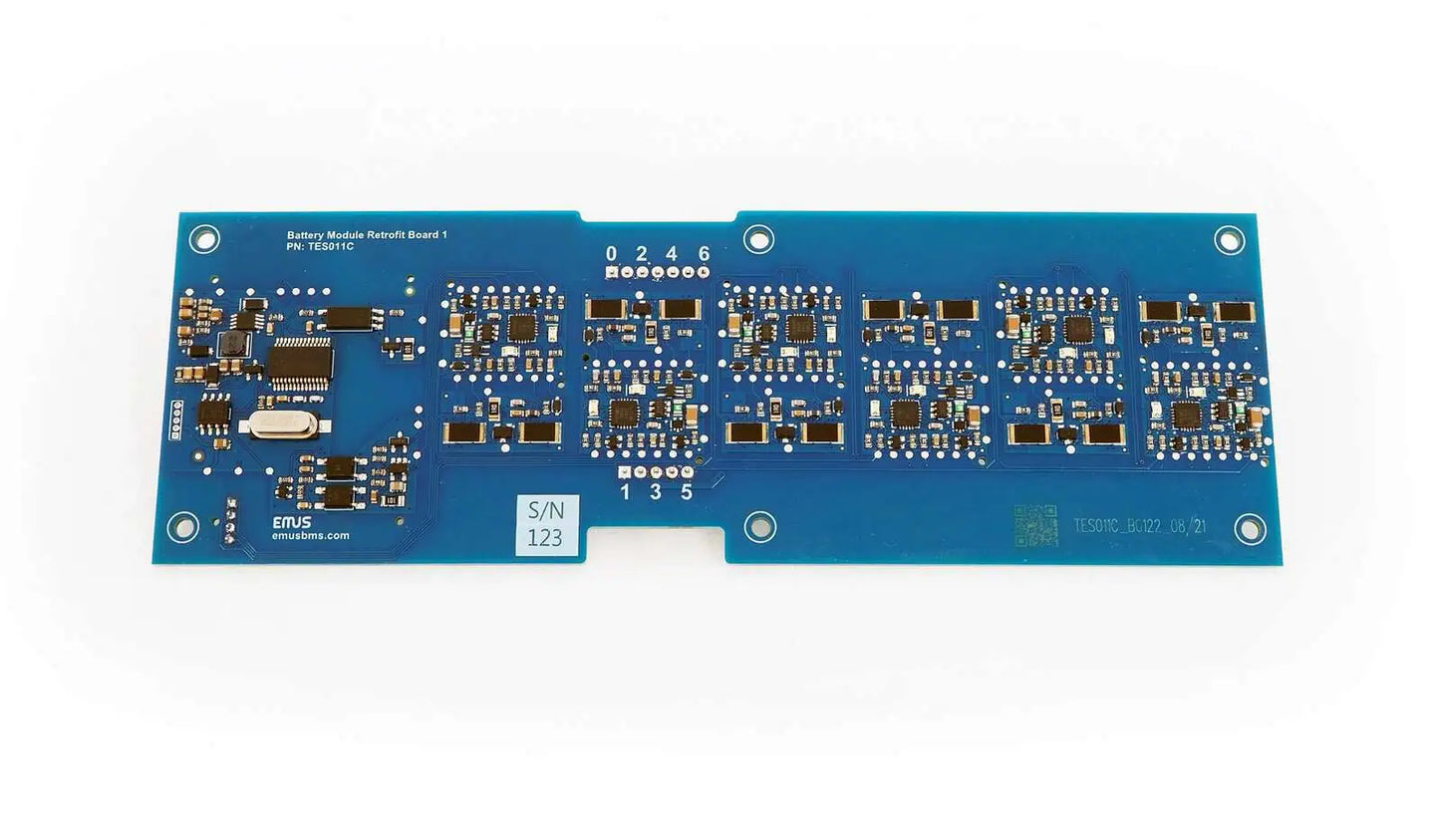

Download EMUS Tesla Module Retrofit Board Datasheet

Need Batteries too?
If you also want to buy some Tesla 5.3kWh Battery Modules. You can order them HERE

(NOTE: Battery modules not available for International Shipping)
