Jaguar I-Pace Module - 2.6kWh / 236Ah / 11V
Jaguar I-Pace Module - 2.6kWh / 236Ah / 11V
excluding VAT
International Shipping NOT available
Couldn't load pickup availability

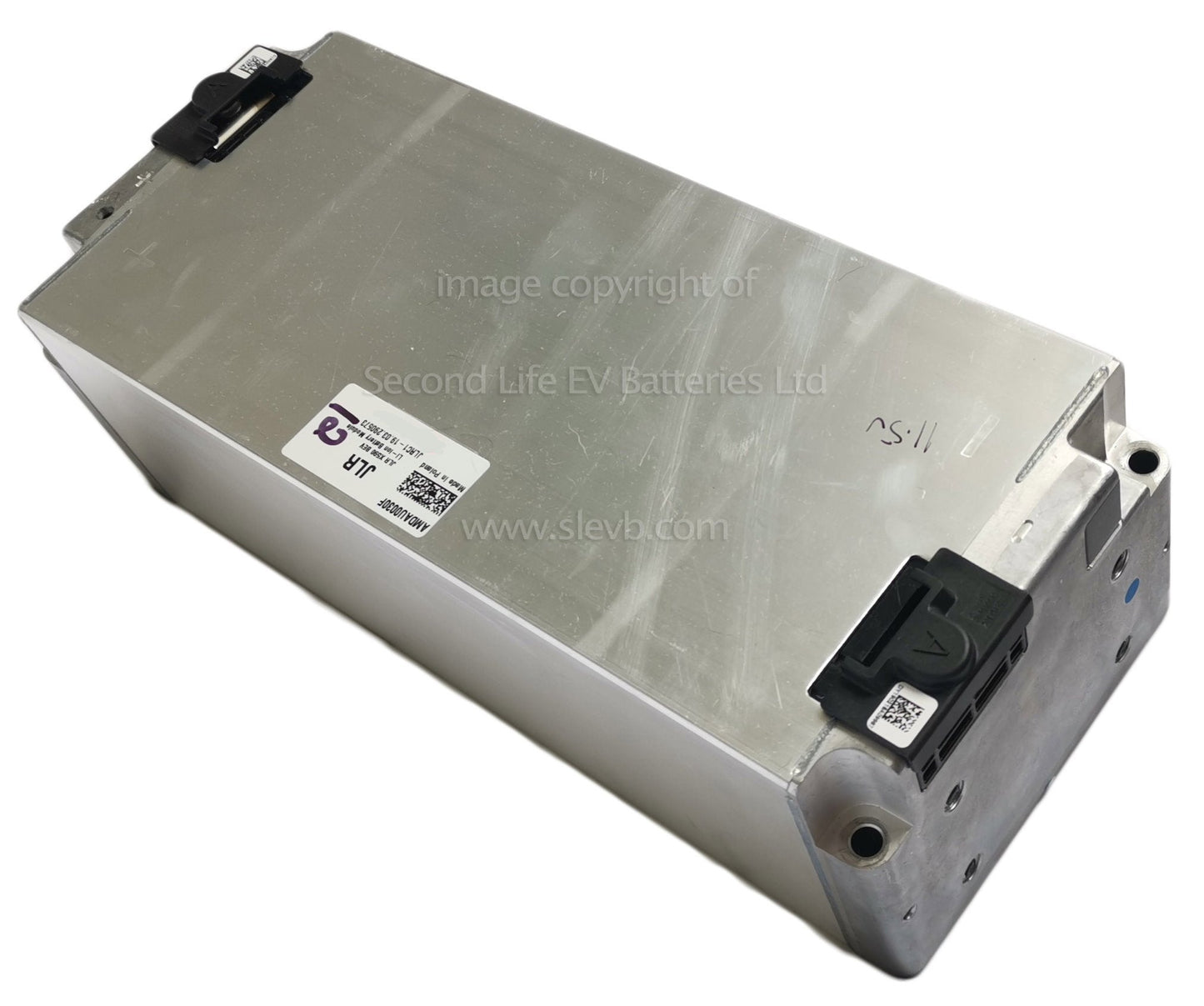

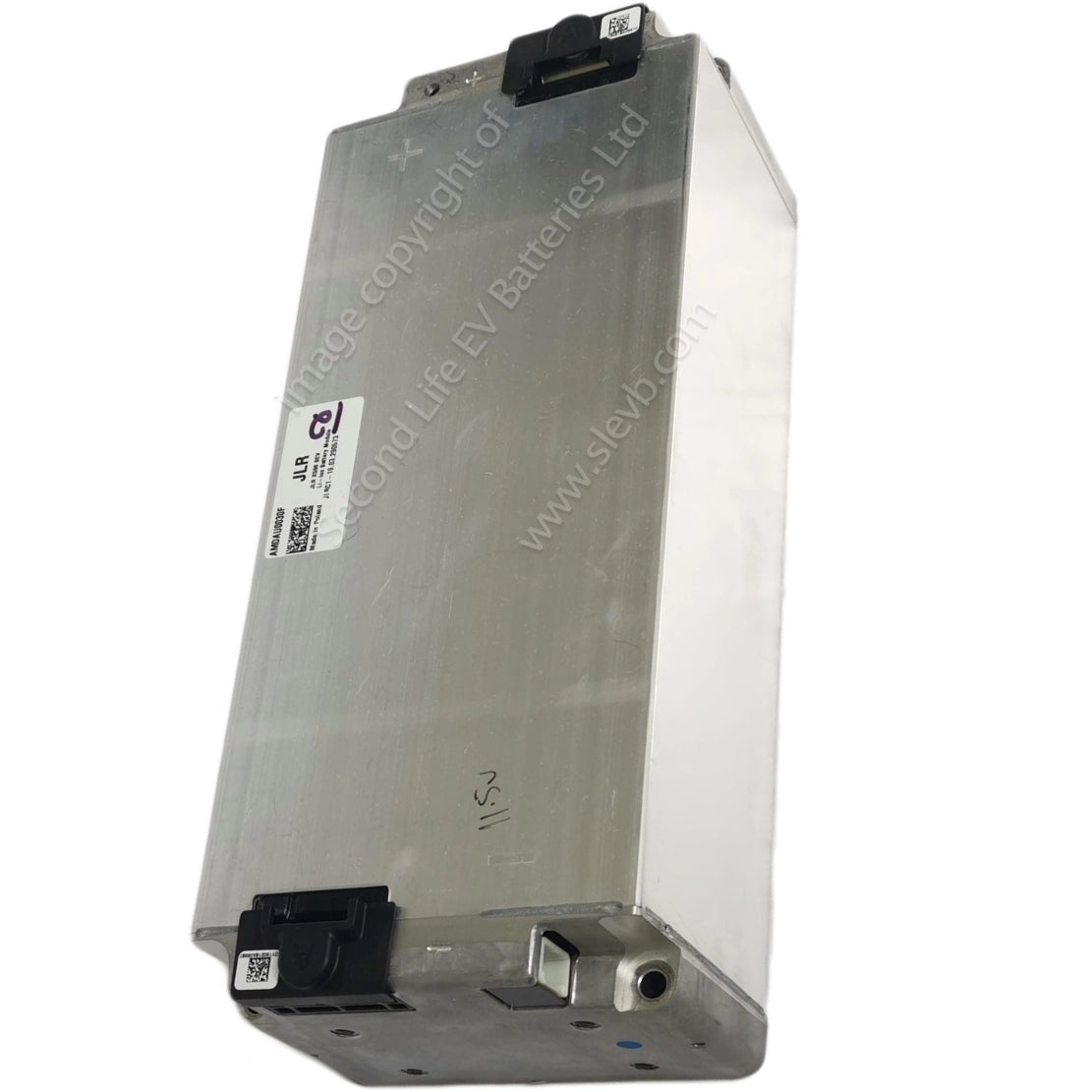

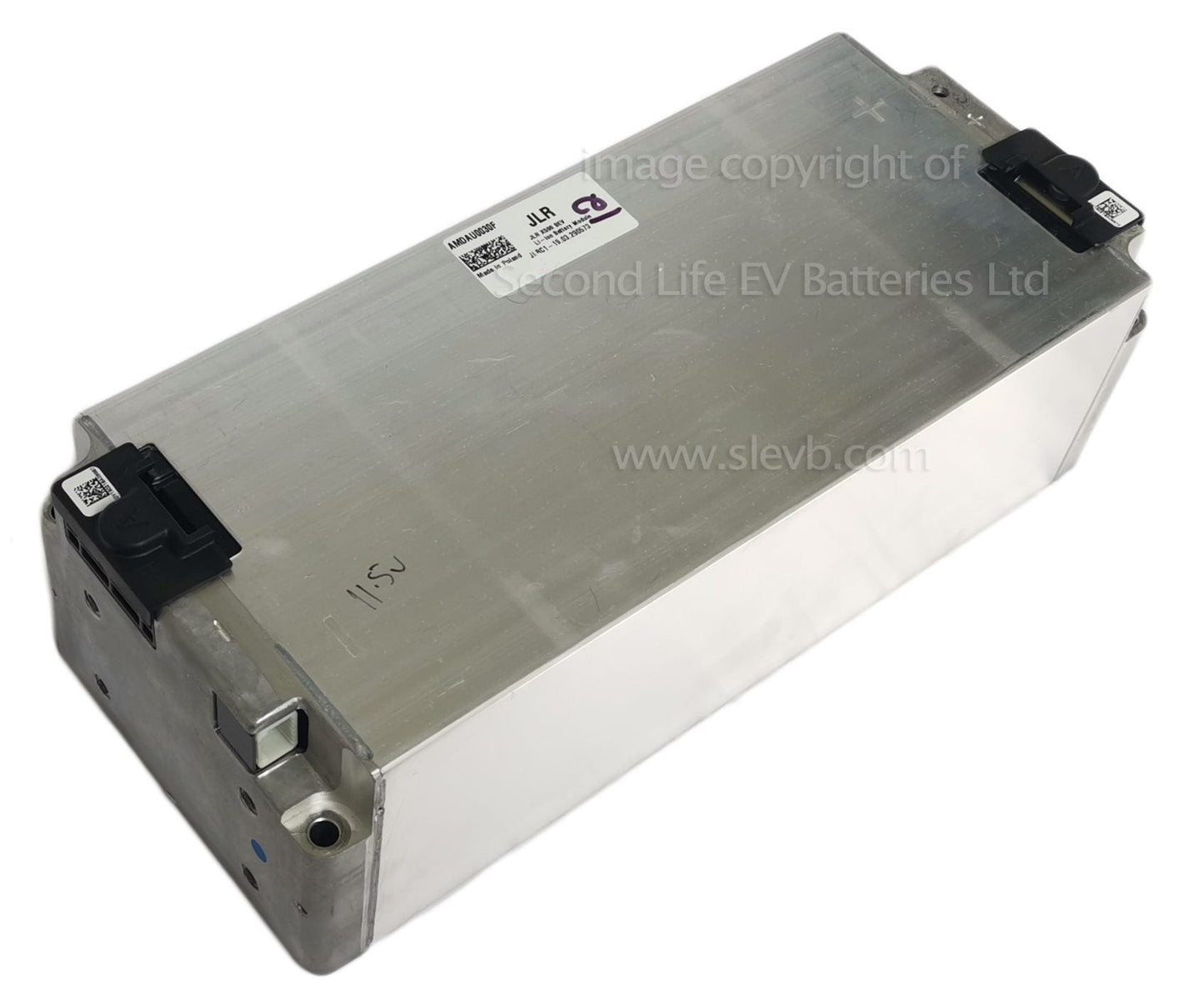

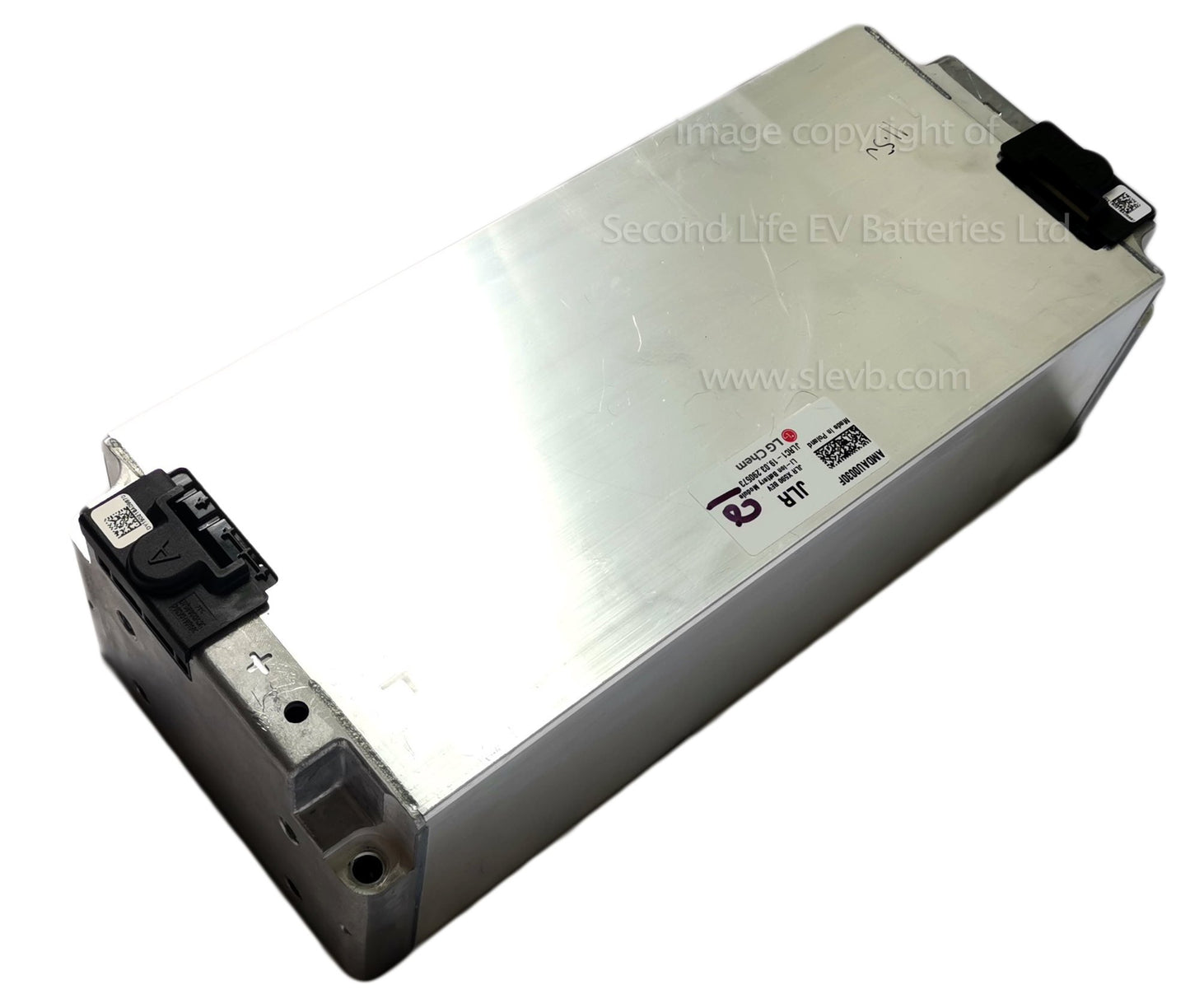

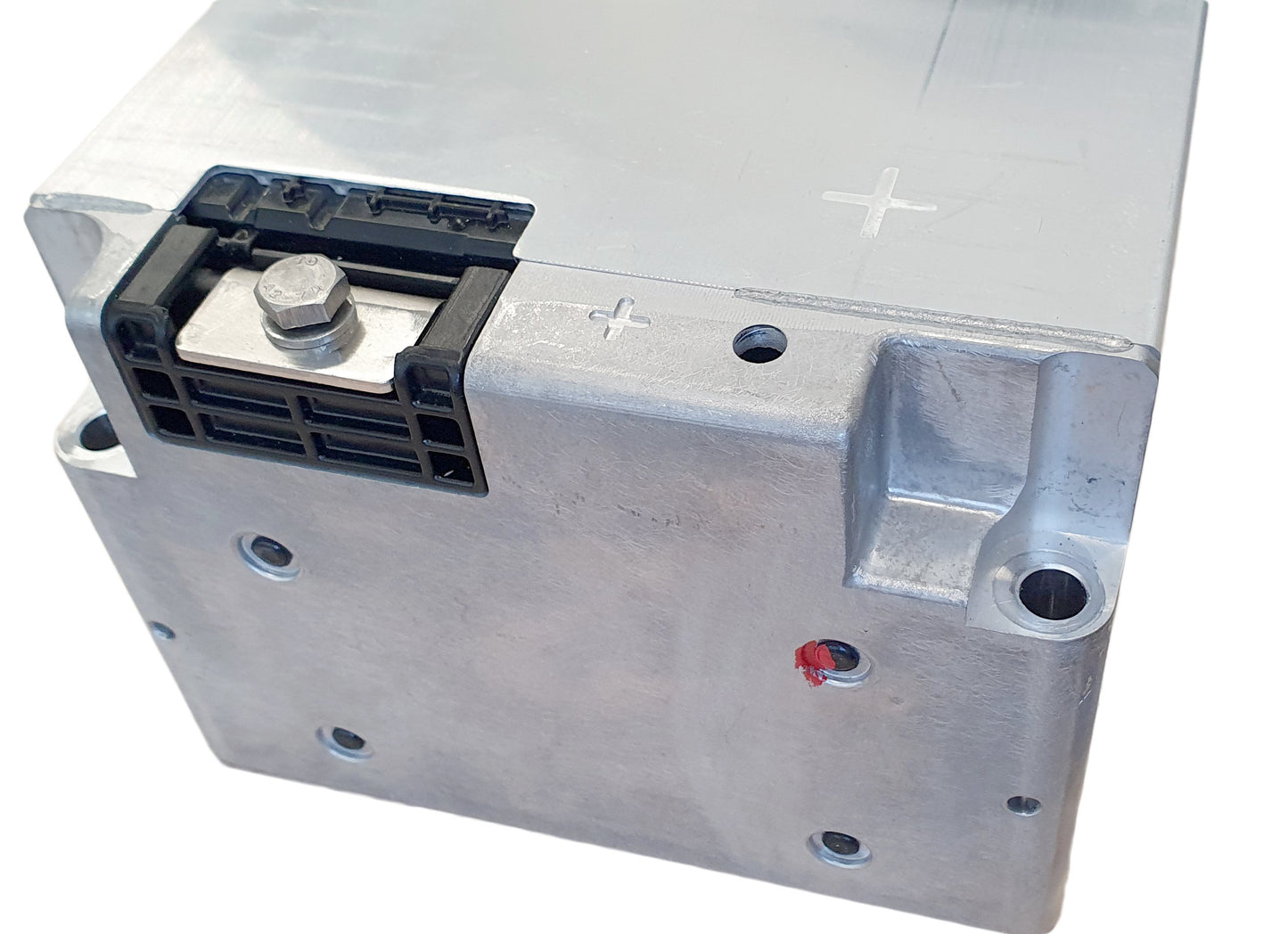

Original Jaguar I-Pace Module Lithium-ion Battery
Jaguar I-Pace Module Specification
Manufacturer Part Number: AMDAU0168B
4P3S Configuration
Nominal Voltage – 10.8v
Voltage Min: 9.6v
Voltage Max: 12.3v
Min cell voltage 2.8v (Recommended cell voltage at 0 soc 3.2v)
Max cell voltage 4.2v (Recommended cell voltage at 100% soc 4.1v)

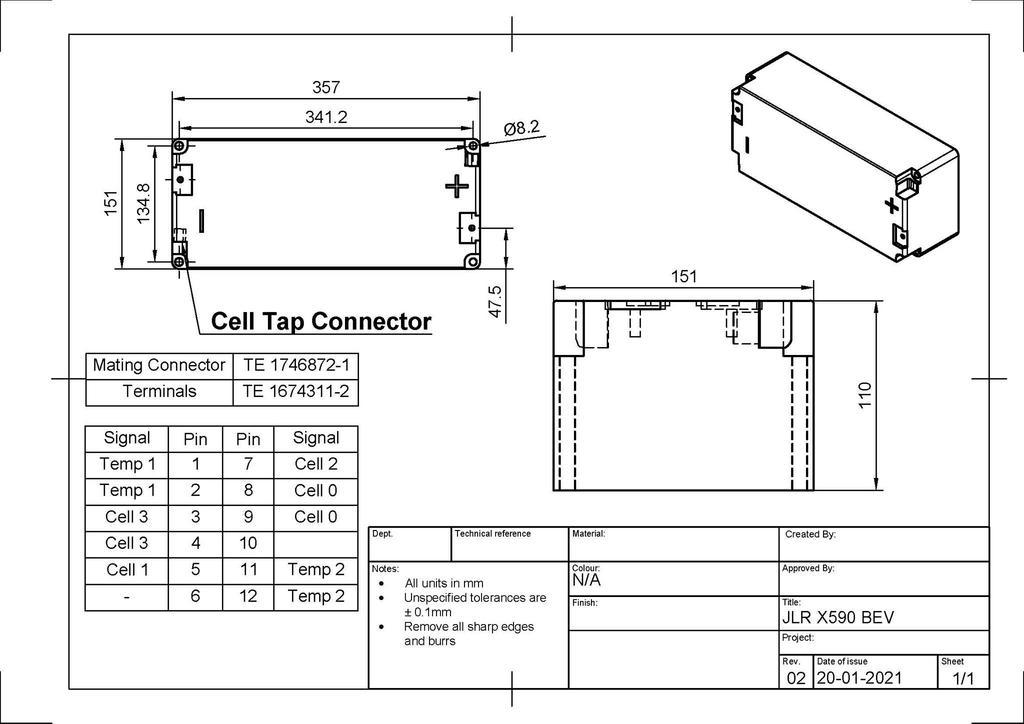

Length 357mm
Width 151mm
Height 110mm
Mass 12kg
Modules will be tested with our Deutronic dbl1200hv-60 & other diagnostic and conditioning system workshop tools using the Manufacture pre defined high and low voltages of this module.
