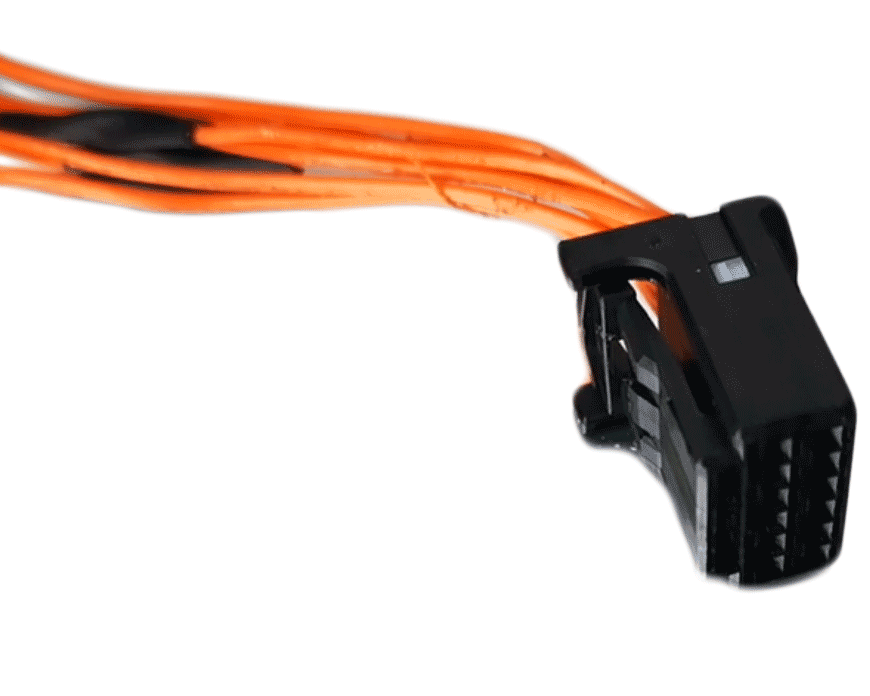

  • jag ipace module cell tap connector
1 8

Jaguar

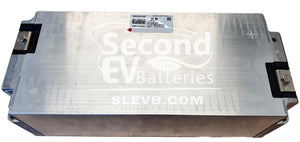

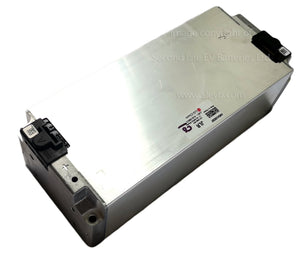

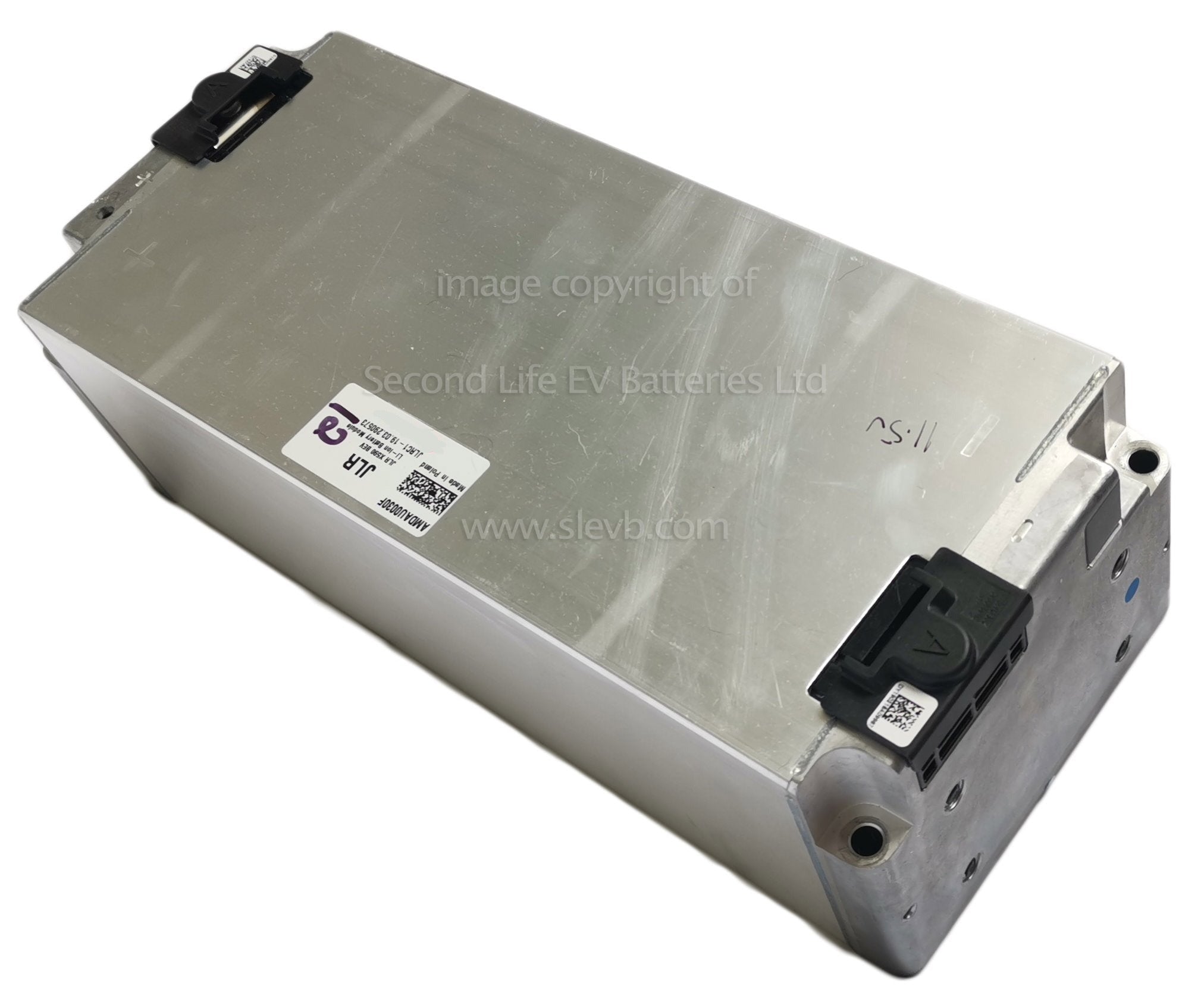

Jaguar I-Pace Module - 2.6kWh / 236Ah / 11V

Jaguar I-Pace Module - 2.6kWh / 236Ah / 11V

excluding VAT

£266.66 GBP
£266.66 GBP
Sale Sold out
Shipping & tax calculated at checkout.
Price per kWh £102.56

International Shipping NOT available

Original Jaguar I-Pace Module Lithium-ion Battery

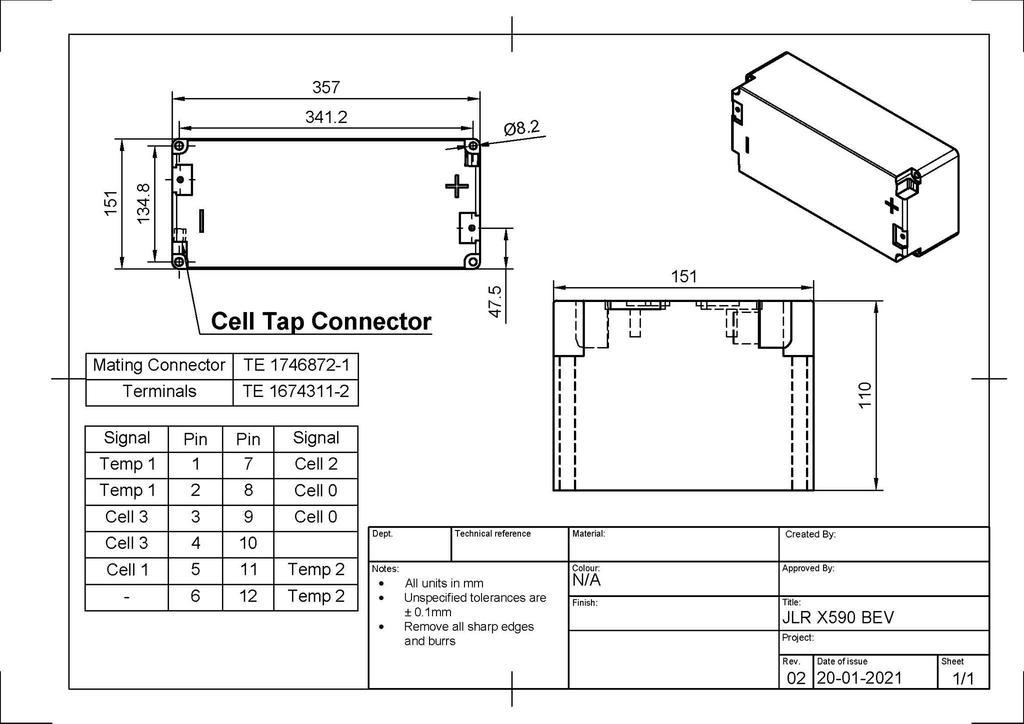

Jaguar I-Pace Module Specification

Manufacturer Part Number: AMDAU0168B
4P3S Configuration
Nominal Voltage – 10.8v
Voltage Min: 9.6v
Voltage Max: 12.3v
Min cell voltage 2.8v (Recommended cell voltage at 0 soc 3.2v)
Max cell voltage 4.2v (Recommended cell voltage at 100% soc 4.1v)
Length 357mm
Width 151mm
Height 110mm
Mass 12kg

Modules will be tested with our Deutronic dbl1200hv-60 & other diagnostic and conditioning system workshop tools using the Manufacture pre defined high and low voltages of this module.



International Shipping NOT AVAILABLE

Jaguar I-Pace Module - EV Module
