Tesla 5.3kWh Module With BMS KIT

Overview of Tesla 5.3kWh with BMS KIT

This battery & BMS kit you get  1 x Tesla 5.3kWh battery module and 1xEMUS BMS. The kit includes the required Tesla Slave board by EMUS and all the accessories needed to manage the battery. It even includes a current sensor (loop style). More modules can be added to this BMS.

Tesla 5.3kWh Module Details
===================

Original Capacity: 232Ah, 5.3kWh

Maximum Voltage: 25.2V (4.2V per cell)
Nominal Voltage: 22.8V (3.8V per cell)
Minimum Voltage: 18V (3V per cell)

Height: 75mm
Width: 300mm
Length: 685mm
Bolt Size: M8

Based around 444 Panasonic NCR18650B cells running in 74p6s configuration. Each module runs at 22.8V nominal and charge to 25.2V max. They can do 225 amps continuous output and up to 1500 amps max for 3 seconds. Total energy storage is 5.3 kWh. These packs are ideal for 24V, 48V, 72V, 96V, 120V, 144V, and 400V EV systems. These modules also work for home energy storage and RV applications.

Modules have all been tested with one of our capacity tools such as our Deutronic dbl1200hv-60 diagnostic and conditioning system workshop tool using the Manufacture pre defined high and low voltages of this module or an iCharger. Read more

More Tesla 5.3kWh modules details and photos available on this page

EMUS BMS Details
===================

This EMUS BMS Basic Starter Kit - Tesla 5.3kWh Module BMS includes everything you need to operate a Tesla module. This Battery Management System (BMS) starter kit is designed to support up to one Tesla 5.3kWh battery module. Although easily expandible beyond this.

Included in Kit
1  x  EMUS G1 BMS + cables & plugs

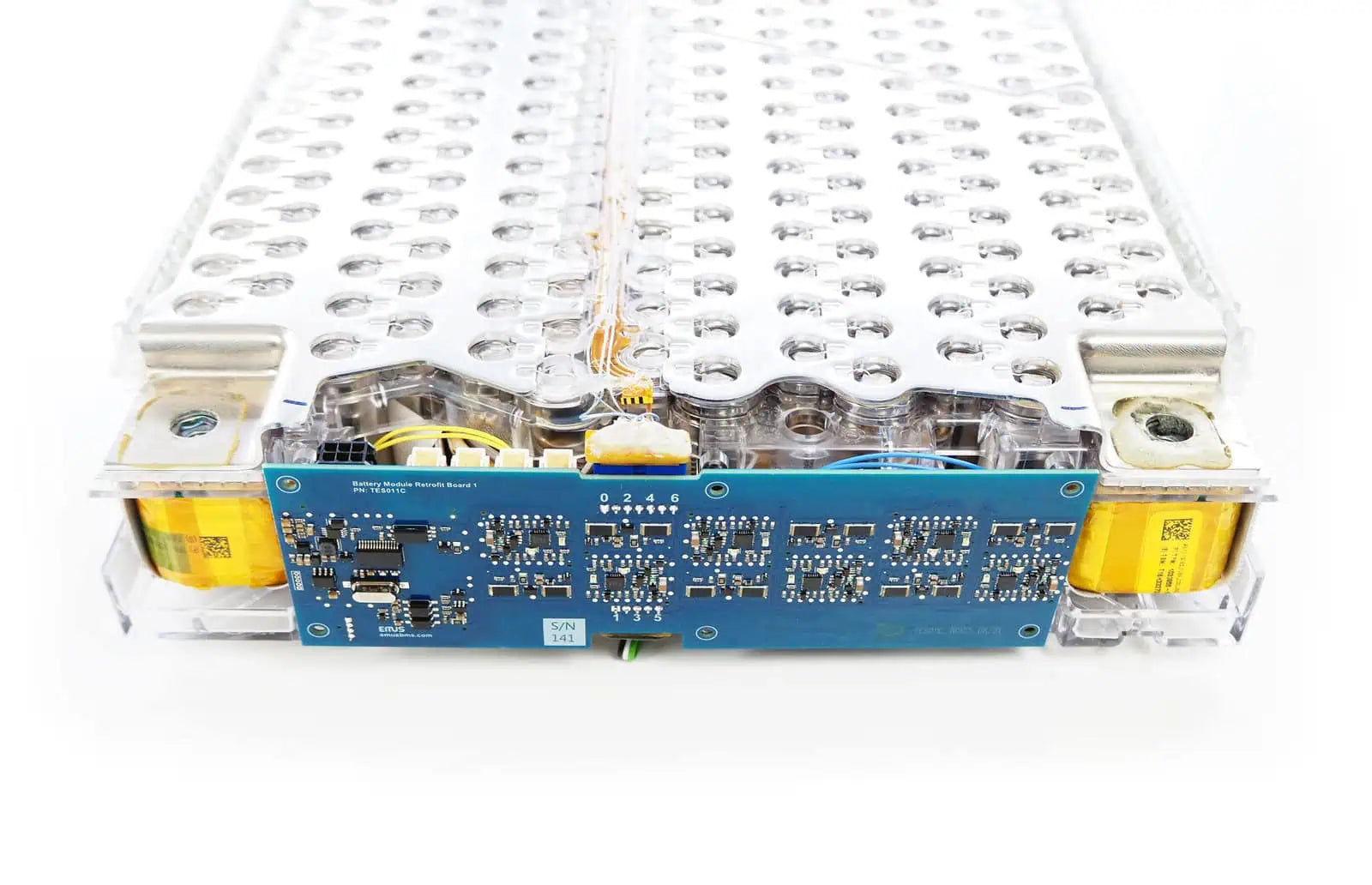

1  x  Tesla PCB Model S retrofit BMS (breakout board) + cables & plugs + temperate probes (for 1 module)
1  x  Current Sensor - Loop Style
1  x  CAN to CAN Cable 100cm
3  x  CAN to CAN Cable 50cm
3  x  CAN 3 Way Connector
2  x  CAN Terminator
1  x  BMS Power Supply
1  x  USB cable

Not included in Kit (excluded):
Battery Power cables - Parallel/Series cable
Battery Charger / Inverter - Compatible list
Mains Inverter - Compatible list

Buyers are expected to have comprehensive battery and electrical knowledge and to be self supporting with aid of the comprehensive manual, data sheets and FAQ’s provided. Frequently Asked Questions | EMUS BMS

Above Starter Kit will only work with:

1 x Tesla 5.3kWh battery Module

Scalability
This BMS system is scalable. A single G1 BMS can connect to 24 Tesla modules in series/parallel per system. You can even connect multiple G1 BMS together with one becoming the master to produce even larger systems.

If you want to connect to more modules than this Basic Starter Kit is designed for, please open a support ticket HERE. Include how many Modules you require and someone will create you a BMS kit package.

Accessories
EMUS Accessories website has many additional accessories you can purchase from us currently not listed on this website such as bluetooth, screens, sensors, Isolator, temperature probes etc.. Just contact us HERE if you require them.

Manuals & Datasheets
Download EMUS G1 BMS Datasheet
Download EMUS G1 BMS Manual
Download EMUS Tesla Module Retrofit Board Datasheet

More EMUS BMS details and photos available on this page
