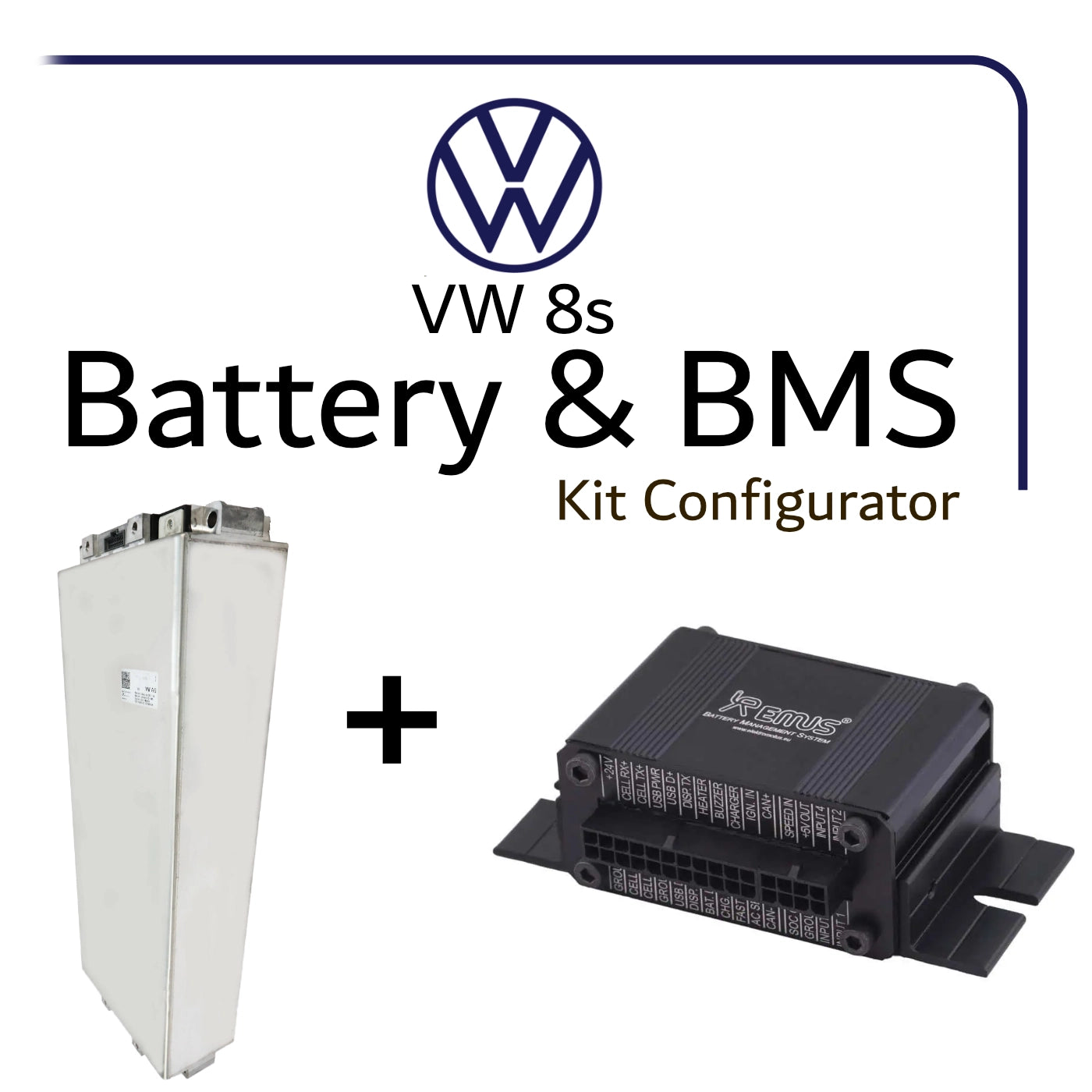

VW ID 8s Battery & BMS

VW ID 8s Battery & BMS

£1,249.00
inc. VAT
£1,040.83
excl. VAT
£1,249.00 GBP
Sale Sold out
Collection is FREE from BH23 3TS. UK Mainland Delivery quote available at checkout.
Select Voltage
Select kWh

International Shipping NOT available

This Kit will include the correct number of VW ID MEB 8s Battery Modules for your selected kWh and voltage. It also includes the correct number of cables, slave boards (CCGM), connectors etc for a complete kit. Some electrical understanding is required.

If you need to know the number of modules above divide the kWh selected by 6.85 the kWh of a single VW ID 8S module.

Included in Kit
EMUS G1 BMS + cables & plugs
Slave Board(s) (CCGM)
Current Sensor - Loop Style
CAN to CAN Cables 150cm
CAN 3 Way Connectors
CAN Terminators
BMS Power Supply
USB cable

Battery Module Details
VW ID 8s Module Details

BMS Manuals & Datasheets
Download EMUS G1 BMS Datasheet
Download EMUS G1 BMS Manual
Download EMUS CCGM Datasheet

NOTE: Voltage and kWh above selection are all approximation and have been rounded DOWN to nearest whole number. Actual Nominal voltages are in table below:

Nominal Voltage Voltage Min Voltage Max
29.6 22.4 33.6
59.2 44.8 67.2
88.8 67.2 100.8
118.4 89.6 134.4
148 112 168
177.6 134.4 201.6
207.2 156.8 235.2
236.8 179.2 268.8
