VW MEB ID Battery Module with BMS

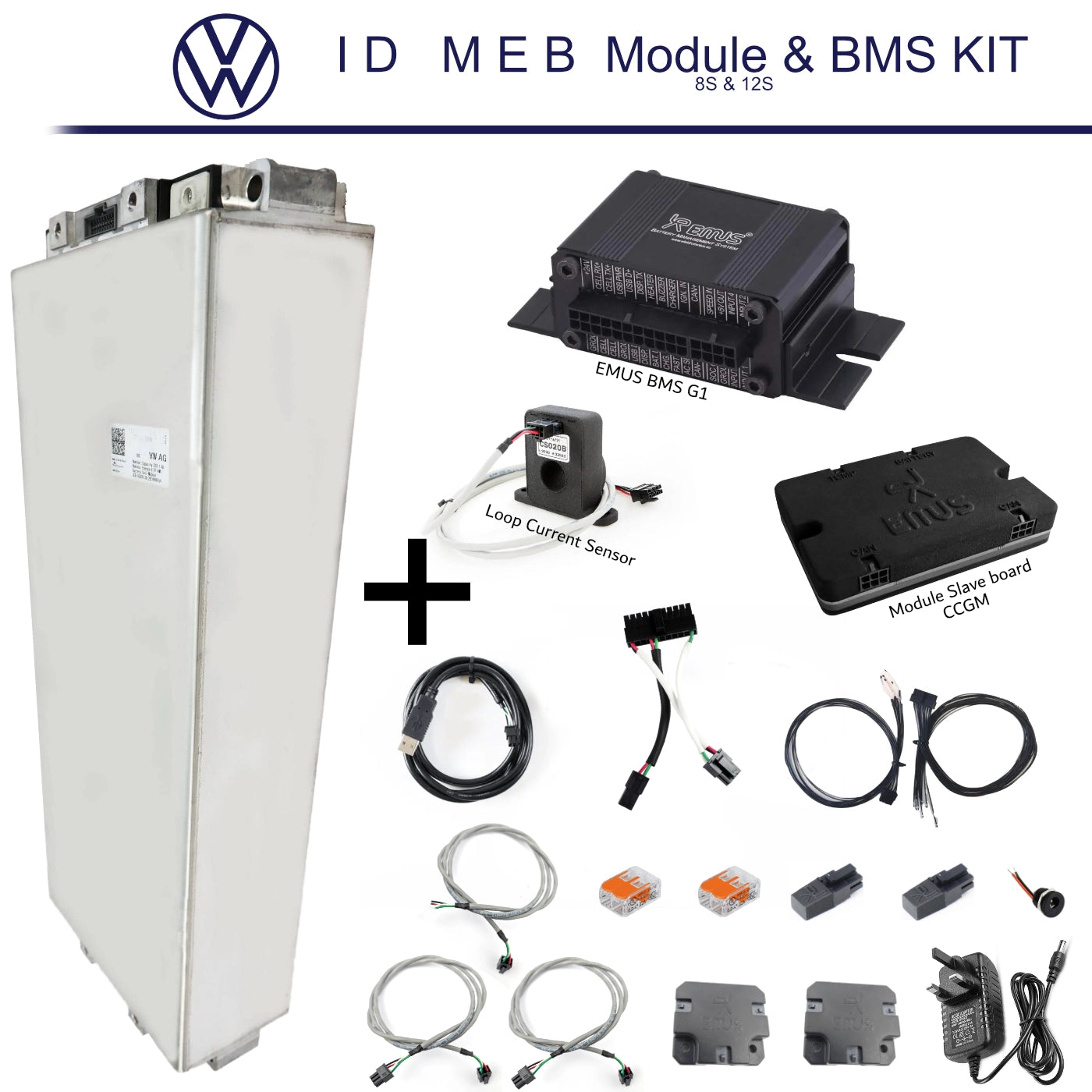

Overview of VW MEB ID Battery Module with BMS KIT

This battery & BMS kit you get  1xVW MEB ID battery module (8s or 12s) and 1xEMUS BMS. The kit includes the all the accessories needed to manage the battery. It even includes a current sensor (loop style). More modules can be added to this BMS.

Module details can be found here 8s or here 12s

This EMUS BMS Basic Starter Kit - VW MEB BMS includes everything you need to operate these VW MEB modules. This Battery Management System (BMS) is designed to support up to two VW MEB 8s battery modules or one VW MEB 12s battery module. Although easily expandible beyond this.

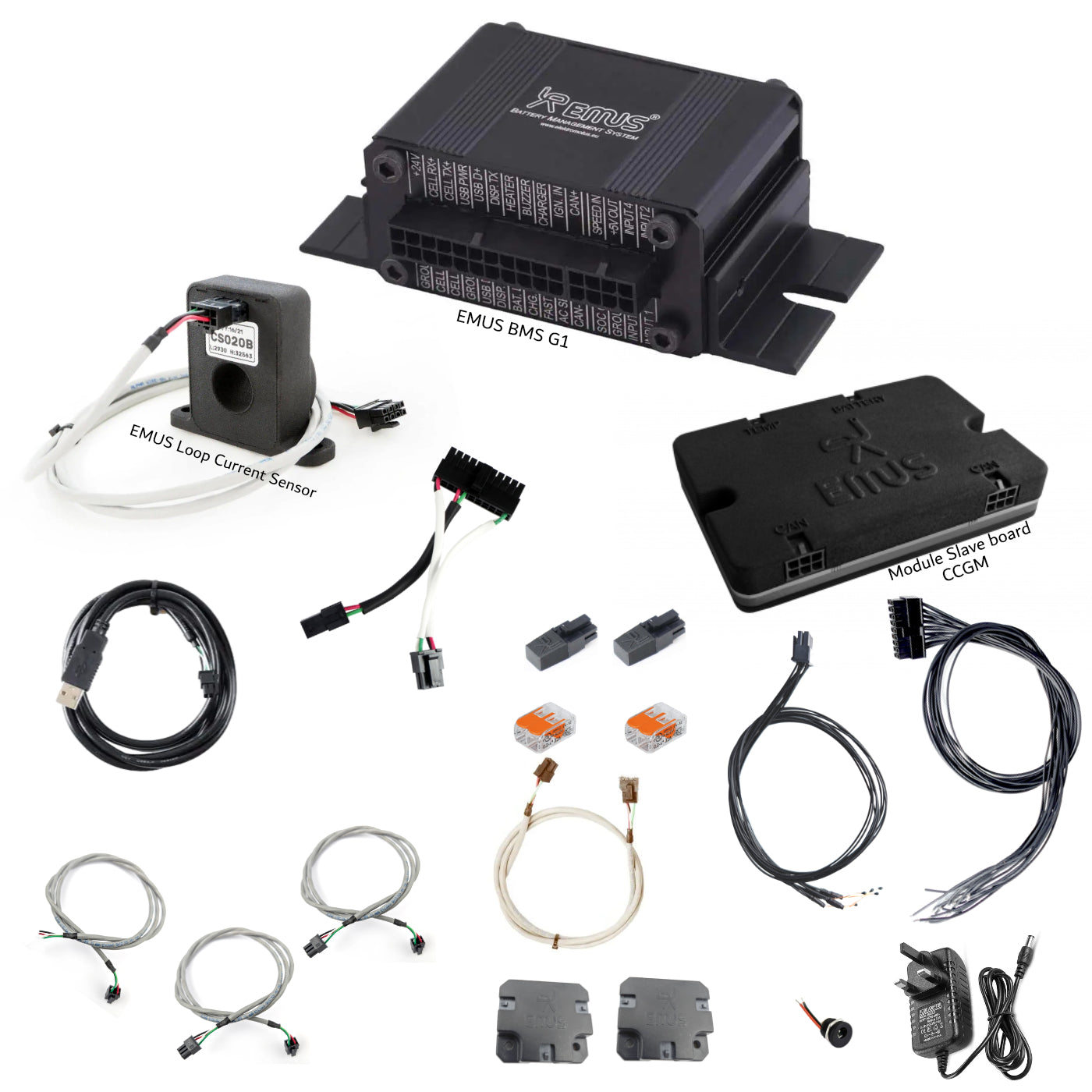

Included in Kit
1  x  EMUS G1 BMS + cables & plugs
1  x  CCGM (Slave board) + cables & plugs + 5 temperate probes
1  x  Current Sensor - Loop Style
1  x  CAN to CAN Cable 100cm
3  x  CAN to CAN Cable 50cm
2  x  CAN 3 Way Connector
2  x  CAN Terminator
1  x  BMS Power Supply with barrel socket
1  x  USB cable

Not included in Kit (excluded):
Battery Module
Data plugs for Battery Module(s)​
Battery Power cables - Parallel/Series cable
Battery Charger - Compatible list
Mains Inverter - Compatible list

Buyers are expected to have comprehensive battery and electrical knowledge and to be self supporting with aid of the comprehensive manual, data sheets and FAQ’s provided. Frequently Asked Questions | EMUS BMS

Above kit will only work with:

2 x VW MEB 8s Module (not supplied in this kit).
1 x VW MEB 12s Module (not supplied in this kit).

Scalability
This BMS system is scalable. A single G1 BMS can connect to 28 CCGM (Max of 448 cells depending on configuration) you can even connect multiple G1 BMS together with one becoming the master to produce even larger systems.

If you want to connect to more modules than this Basic Starter Kit is designed for, please open a support ticket HERE. Include how many Modules you require and someone will create you a BMS kit package.

Accessories
EMUS Accessories website has many additional accessories you can purchase from us currently not listed on this website such as bluetooth, screens, sensors, Isolator, temperature probes etc.. Just contact us HERE if you require them.

Manuals & Datasheets
Download EMUS G1 BMS Datasheet
Download EMUS G1 BMS Manual
Download EMUS CCGM Datasheet

(NOTE: Battery modules not available for International Shipping)
